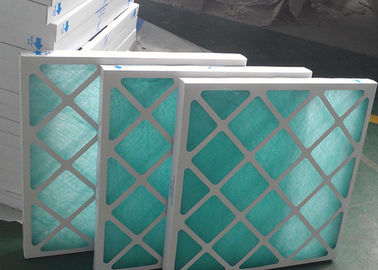

Air Flow Mini Cardboard Air Filter , F7 Paper Frame Pleated Air Conditioner Filters

I'm Online Chat Now

Air Flow Mini Cardboard Air Filter , F7 Paper Frame Pleated Air Conditioner Filters

China Air Flow Mini Cardboard Air Filter , F7 Paper Frame Pleated Air Conditioner Filters supplier
Air Flow Mini Cardboard Air Filter , F7 Paper Frame Pleated Air Conditioner Filters supplier Air Flow Mini Cardboard Air Filter , F7 Paper Frame Pleated Air Conditioner Filters supplier

Large Image :  Air Flow Mini Cardboard Air Filter , F7 Paper Frame Pleated Air Conditioner Filters

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ISO
Model Number: sandard

Payment & Shipping Terms:

Minimum Order Quantity: 50 ocs
Packaging Details: packed into standard export cartons with wooden case ouside
Delivery Time: 15 days after receive despoit
Payment Terms: T/T, Western Union
Supply Ability: 500 pcs per day
Contact Now
Detailed Product Description
Material: Non-woven Efficiency:: G3 , G4
Construction: Panel Filter Filtration Grade: Pre Filter
Porosity: 0.5μ Weight:: Customers Requirement
Application Fields: HVAC, MAU System,building

2018 New Large Air Flow Mini F7 Paper Frame Pleated Cardboard Air Filter



Product advantages


1.The filtration material is made from non-woven fabrics, and the synthetic fiber. It has the advantage of the large dust holding capacity, the low pressure loss in the initial period and lager air flow.
2.The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times’ filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace, less purchasing expense.
3.The moisture-proof: 100%;
4.Heat resistance: 80℃;
5.The rank of the filtration: G4.F5.F6.F7.F8.



Product Description


1.Large dust holding capacity

2.The low pressure loss in the initial period

3.Lager air flow



Data sheet
Type of air intake filter: synthetic fiber foldaway filter
Frame of air intake filter: aluminum, cardboard or galvanized
Media of air intake filter: synthetic fiber
Protect mesh: aluminum net or stainless steel net
EN779 class of air intake filter: G2, G3, G4, F5
Average arrestance: 84%-90%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3, EU4, EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 200Pa-250Pa
Max. Air flow: 125% of the rated air flow
Temp. Resistance: 100°C
Humidity: 100%



Note: Other specifications are available on request.





Normal size



Actual size

W*H*W(mm)

Rated air flow(m³/h)
    1.5m/s 2.5m/s 3.0m/s
24*24*1 595*595*22 2040 3400 -
20*24*1 495*595*22 1785 2975 -
20*20*1 495*495*22 1445 2380 -
12*24*1 287*595*22 1020 1700 -
24*24*2 595*595*44 2040 3400 4250
20*24*2 495*595*44 1700 2805 3570
20*20*2 495*495*44 1445 2380 2975
16*24*2 390*595*44 1445 2380 2675
16*20*2 390*495*44 1105 1870 2380
12*24*2 287*595*44 1020 1700 2125
24*24*4 595*595*90 2040 3400 4250
20*20*4 495*495*90 1455 2380 2975
12*24*4 287*595*90 1020 1700

2125





Air Flow Mini Cardboard Air Filter , F7 Paper Frame Pleated Air Conditioner Filters



FAQ


Q1: What's the MOQ?
A1: The MOQ is 5pcs.

Q2: What' s the payment terms can you accept?
A2: T/T, L/C, Western Union.

Q3: How about the shipment?
A3: By sea, by air or by express, according to Qty and your demand.

Q4: How long is the lead time?
A4: About 3-10 days.

Q5: Are you a factory or trading company?
A5: Surely professional factory, set design, manufacturing &sale in one, you can get best factory quote from us.

Q6: What information should I provide if inquiry your air filter?
A6: Size, efficiency, filter frame, media, application, type etc. So that we can offer you exact quote.
