Residential Activated Carbon Air Filter Replacement Pellet Carbon Yype

I'm Online Chat Now

Residential Activated Carbon Air Filter Replacement Pellet Carbon Yype

China Residential  Activated Carbon Air Filter Replacement  Pellet Carbon Yype supplier
Residential  Activated Carbon Air Filter Replacement  Pellet Carbon Yype supplier Residential  Activated Carbon Air Filter Replacement  Pellet Carbon Yype supplier

Large Image :  Residential Activated Carbon Air Filter Replacement Pellet Carbon Yype

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: IOS
Model Number: Φ145x330mm,Φ145x450mm,Φ145x6000mm

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Packaging Details: 4pc/carton
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs/day
Contact Now
Detailed Product Description

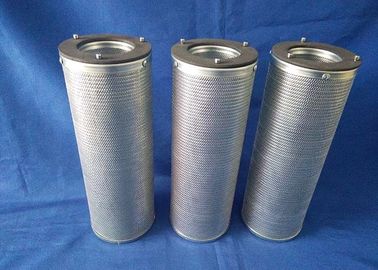

Material: Pellet Carbon Body: Galvanized Sheet
Diameter: 145mm Length: 330mm, 400mm, 600mm, Or Customized
Seal: Included Pack: 4pc/box

Chemical And Activated Carbon Filter Cartridge​





Description

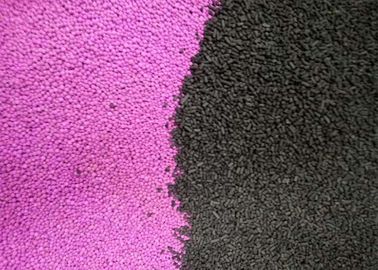

1 Activated carbon filter cartridge is made of high quality pellet activated carbon. The Iodine value is 930mg/g, Carbon tetra-chloride adsorption rate(CTC)IS 55%.



2 The chemical filter cartridge is made of two raw material, half of activated carbon, half of Potassium permanganate impregnated activated alumina. The latter can remove hydrogen sulfide, mercaptan, ethylene, formaldehyde, SOx, NOx ... widely used for corrosion control in industrial environments, clean rooms, general air purification and elimination of ethylene to control fruit, vegetable ripening and flowers. Chemical filter cartridge has more application than activated carbon filter cartridge.



Application:



Commercial Building

Data center

Food and drinks

Health care

Guest House

Microelectronics

Museum and History Store

Pulp and paper

Refinery

School and university

Wastewater treatment

Waste management



Packing:



4pcs/carton, separated by corrugated cardboard in the middle carton to prevent collisions with each other, Chemical and activated carbon filter cartridge can’t be damaged.





Model



Dimension
(mm)
Carbon layer thickness
(mm)
Carbon content
(kg)
Total weight
(kg)

Resistance

@air volume
(Pa@m3/h)

Packing
Dia.×Length
HACT-330 Ф145×330 28.5 1.37 3.27 135@225 31*31*41.5
HACT-405 Ф145×405 28.5 1.72 3.82 110@225 31*31*49
HACT-450 Ф145×450 28.5 1.88 4.08 100@225 31*31*53.5
HACT-480 Ф145×480 28.5 2.1 4.5 90@225 31*31*56.5
HACT-500 Ф145×500 28.5 4.6 5.1 85@225 31*31*58.5
HACT-600 Ф145×600 28.5 6.5 5.2 70@225 31*31*68.5



Residential  Activated Carbon Air Filter Replacement  Pellet Carbon Yype

 Residential  Activated Carbon Air Filter Replacement  Pellet Carbon Yype
