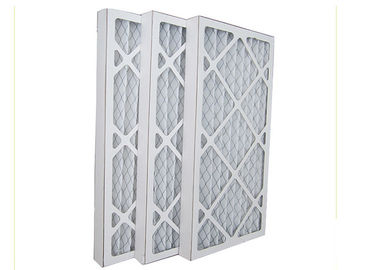

HVAC Pleat Panel Air Filter For Ventilation System Odor Cleaning G3 G4

I'm Online Chat Now

HVAC Pleat Panel Air Filter For Ventilation System Odor Cleaning G3 G4

China HVAC  Pleat Panel Air Filter For Ventilation System Odor   Cleaning G3 G4 supplier
HVAC  Pleat Panel Air Filter For Ventilation System Odor   Cleaning G3 G4 supplier HVAC  Pleat Panel Air Filter For Ventilation System Odor   Cleaning G3 G4 supplier

Large Image :  HVAC Pleat Panel Air Filter For Ventilation System Odor Cleaning G3 G4

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ISO
Model Number: sandard

Payment & Shipping Terms:

Minimum Order Quantity: 50 ocs
Packaging Details: packed into standard export cartons with wooden case ouside
Delivery Time: 15 days after receive despoit
Payment Terms: T/T, Western Union
Supply Ability: 500 pcs per day
Contact Now
Detailed Product Description
Material: Non-woven Efficiency:: G3 , G4
Construction: Panel Filter Filtration Grade: Pre Filter
Porosity: 0.5μ Weight:: Customers Requirement
Application Fields: HVAC, MAU System,building

HVAC Cardboard Pleat Panel Air Filter for Ventilation System



Product Description

Type: QBK Series Pleated Cardboard Prime Air Filter

Features: 1. Reliable, simple, general
2. Large filter area
3. Low resistance
4. Washable
5. Large dust holding capacity
6. Replaceable filter media



Frame: Paper board

Material: Synthetic fiber

Efficiency: G3. G4

Humidity: not more than 90%

Recommended final pressure drop: not more than 180Pa



Applications:



1. Pre filter for commercial & industrial ventilation system
2. Automotive industry
3. Hotel and office building



Specification


Norminal thickness

(inch)

Norminal size

(inch)

Actual sie(mm)

Filter area

(m2)

Air flow /resistance

(m3/h/pa)

Number of pleat/inch

(1inch=305mm)

Height Width Depth
4” 24×24×4 594 594 95 2.66 1700/18 3400/68 11
24×12×4 594 289 95 1.30 850/18 1700/68
24×20×4 594 492 95 2.20 1420/18 2840/68
20×20×4 492 492 95 1.82 1180/18 2360/20
20×16×4 492 391 95 1.45 935/18 1870/68
25×20×4 619 492 95 2.30 1480/18 2960/68
25×25×4 619 619 95 2.90 1860/18 3720/68
2” 24×24×2 594 594 45 1.75 1700/20 3400/70 15
24×12×2 594 289 45 0.85 850/20 1700/70
24×20×2 594 495 45 1.46 1420/20 2840/70
24×18×2 594 445 45 1.31 1275/20 2550/70
20×20×2 495 495 45 1.21 1180/20 2360/70
20×18×2 495 445 45 1.09 1060/20 2120/70
20×16×2 495 394 45 0.97 935/20 1870/70
20×12×2 495 289 45 0.74 715/20 1430/70
25×20×2 622 495 45 1.52 1480/20 2960/70
25×18×2 622 445 45 1.37 1325/20 2650/70
25×16×2 622 394 45 1.18 1180/20 2360/70
1” 24×24×1 597 597 22 0.88 1190/20 2380/70 16
24×12×1 597 292 22 0.43 590/20 1190/70
24×20×1 597 495 22 0.74 995/20 1990/70
20×20×1 495 495 22 0.6 825/20 1650/70
20×16×1 495 394 22 0.48 660/20 1325/70
25×20×1 622 495 22 0.76 1035/20 2070/70
25×16×1 622 394 22 0.61 825/20 1650/70



Product Display

QBK-017

HTB15HJ0NVXXXXaKXVXX760XFXXXbHTB1djh9NVXXXXaDXFXX760XFXXX0



Packaging & Shipping


1. Packaging Details: Carton box and pallets / According to client’s requirement
2. Delivery Details: 7-15 workdays / According to different filters and quantity
3. Shipment Types: International express / air / sea
4. Shipment Port: Shanghai, Tianjin or any other Chinese ports

Panel package2
