Inlet 200mm / 8" Inline Duct Fan For Indoor Grow Tent Garden Greenhouse Ventilation

I'm Online Chat Now

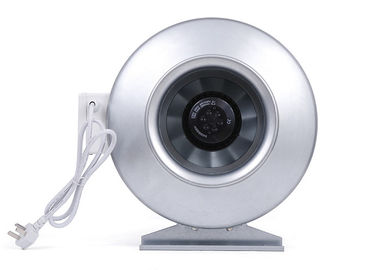

Inlet 200mm / 8" Inline Duct Fan For Indoor Grow Tent Garden Greenhouse Ventilation

China Inlet 200mm / 8"  Inline Duct Fan For Indoor Grow Tent  Garden Greenhouse Ventilation supplier
Inlet 200mm / 8"  Inline Duct Fan For Indoor Grow Tent  Garden Greenhouse Ventilation supplier Inlet 200mm / 8"  Inline Duct Fan For Indoor Grow Tent  Garden Greenhouse Ventilation supplier Inlet 200mm / 8"  Inline Duct Fan For Indoor Grow Tent  Garden Greenhouse Ventilation supplier

Large Image :  Inlet 200mm / 8" Inline Duct Fan For Indoor Grow Tent Garden Greenhouse Ventilation

Product Details:

Place of Origin: China
Brand Name: jiujiu

Payment & Shipping Terms:

Minimum Order Quantity: 50sets
Price: USD 1 - 100/set
Packaging Details: carton
Delivery Time: 15 - 30days
Payment Terms: L/C, T/T
Supply Ability: 8600sets per month
Contact Now
Detailed Product Description
Inlet: 200mm Motor: 158w
Airflow: 1000m3/h Speed: 2500rpm
Weight: 6.5kgs OEM: Available

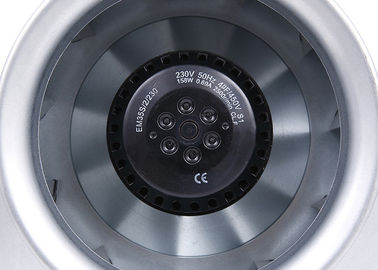

The capacitor operation asyn. motor has got CE approved.

The motor integrated with the impeller, small volume, light weights, high efficiency,and long service life.

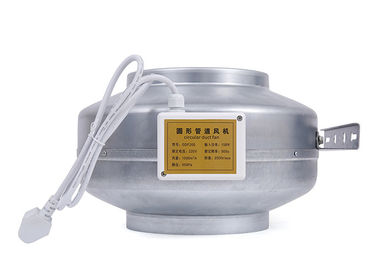

The connecting boxes of inline dust fans have got CE approval. They are made of ABS materials contain flame retardant composition, Installed in the outer surface of the machine, wiring, disassembly is very convenient.

HVAC extractor axial inline fan;

easy installation

Long operating life

Sample order in 5-7 days



Performance parameter



Model

GDF

100

GDF

125

GDF

150

GDF

160

GDF

200

GDF

250

GDF

300

GDF

315

Air volume (m3/h) 290 410 700 760 1000 1100 1800 1890
Wind pressure(pa) 390 350 440 430 550 570 800 820
Voltage /frequency(v/hz) 230/50 230/50 230/50 230/50 230/50 230/50 230/50 230/50
Electric current(A) 0.40 0.4 0.45 0.5 0.69 0.84 1.22 1.22
The input power(W) 85 85 100 115 158 190 280 280
Speed(rpm) 2290 2290 2500 2620 2500 2470 2400 2400
Weight(kg) 3.4 3.5 4.8 4.9 6.5 6.7 8.0 8.2
Capacitance(µf) 2 2 3 4 4 4 6 6
The motor insulation class F F F F F F F F
Fan protection grade IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
The sound power level 47 47 52 52 53 55 56 56



FAQ:

Could you produce fan as our local power voltage?

Yes, you need to tell us your voltage in advance;

What is your payment term?

T/T 30% deposit in advance and 70% balance before shipment;

How long will your factory take for delivery time?

It is about 15 - 30 days according to orders quantity;
