Product Details:
Payment & Shipping Terms:
|
| Usage: | Ventilation Extraction | Airflow: | 290 |
|---|---|---|---|
| Wind Pressure: | 390 | Power: | 85 |
| Weight: | 3.4kg | OEM: | Available |
| High Light: | high cfm inline duct fan,industrial inline exhaust fans |
||

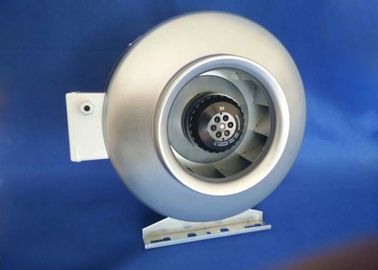

Inline duct fans can be connected to standard pipe (inlet and outlet Size 100-315mm).
With low noise, high static pressure (350-830PA), small size, convenient installation, light weight, and so on characteristics.
The motors and connecting boxes have got CE approval.
For hydroponics/ horticulture ventilation
One piece electric fan in each carton
standard shipping package with good protection
| Performance parameter | ||||||||
|
Model |
GDF 100 |
GDF 125 |
GDF 150 |
GDF 160 |
GDF 200 |
GDF 250 |
GDF 300 |
GDF 315 |
| Air volume (m3/h) | 290 | 410 | 700 | 760 | 1000 | 1100 | 1800 | 1890 |
| Wind pressure(pa) | 390 | 350 | 440 | 430 | 550 | 570 | 800 | 820 |
| Voltage /frequency(v/hz) | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 |
| Electric current(A) | 0.40 | 0.4 | 0.45 | 0.5 | 0.69 | 0.84 | 1.22 | 1.22 |
| The input power(W) | 85 | 85 | 100 | 115 | 158 | 190 | 280 | 280 |
| Speed(rpm) | 2290 | 2290 | 2500 | 2620 | 2500 | 2470 | 2400 | 2400 |
| Weight(kg) | 3.4 | 3.5 | 4.8 | 4.9 | 6.5 | 6.7 | 8.0 | 8.2 |
| Capacitance(µf) | 2 | 2 | 3 | 4 | 4 | 4 | 6 | 6 |
| The motor insulation class | F | F | F | F | F | F | F | F |
| Fan protection grade | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 |
| The sound power level | 47 | 47 | 52 | 52 | 53 | 55 | 56 | 56 |
FAQ:
What is your MQQ?
Usually MQQ is 100pcs. For small quantity order is accepted;
What is your delivery time?
For sample order, it take about 5 - 7 days; for bulk order, it is about 15 - 30 days;
What is your payment term?
We accept T/T, L/C, Paypal and west union;
