Product Details:
Payment & Shipping Terms:
|
| Type: | Centrifugal Fan | Blade Material: | Stainless Steel |
|---|---|---|---|
| Mounting: | Inline Duct Fan | Voltage: | 120V/220V/380V |
| Air Volume: | 2033~1230000m3/h | Speed: | 960~2900r/min |
| Feature: | Low Noise Power Saving | Color: | Silver Or Black |
| High Light: | industrial inline exhaust fans,in line centrifugal duct fan |
||

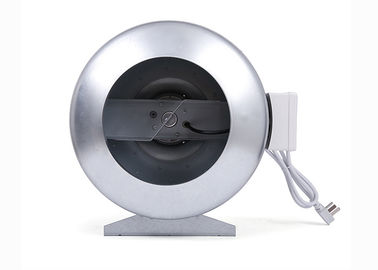

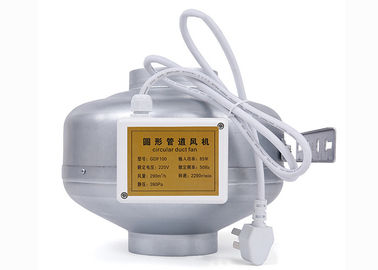

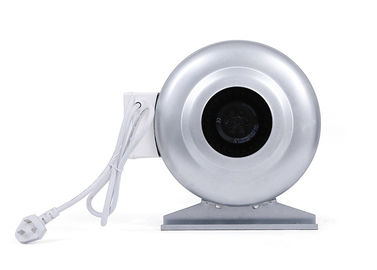

Inline Duct Fan Used With Carbon Filter In The Grow Tent
Application
Inline duct fan used with carbon filter In the grow tent, as its’ name, It’s often used in the grow tent, grow room, or greenhouse. It could be connected with the carbon filter and piping, so remove some bad smells in the closed space. Give people clean air.
But Inline duct fan used in the grow tent it’s not only used in the grow room, grow tent or greenhouse,it also used in the other ventilation system,like hotel marketplace gymnasium supermarket store room and most of public place.
New design feature
•1.high quality&reasonable price
•2.strong airflow&stable performance
•3. UL,CE recognized components
•4.extremely quiet operation
•5.galvanized steel housing
•6 slient ,low price
•7.OEM ok
•8 excellent value price /performance
•9 high quality molded impeller
•10 thermally protected AC motor
Size
| Performance parameter | ||||||||
|
Model |
GDF 100 |
GDF 125 |
GDF 150 |
GDF 160 |
GDF 200 |
GDF 250 |
GDF 300 |
GDF 315 |
| Air volume (m3/h) | 290 | 410 | 700 | 760 | 1000 | 1100 | 1800 | 1890 |
| Wind pressure(pa) | 390 | 350 | 440 | 430 | 550 | 570 | 800 | 820 |
| Voltage /frequency(v/hz) | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 |
| Electric current(A) | 0.40 | 0.4 | 0.45 | 0.5 | 0.69 | 0.84 | 1.22 | 1.22 |
| The input power(W) | 85 | 85 | 100 | 115 | 158 | 190 | 280 | 280 |
| Speed(rpm) | 2290 | 2290 | 2500 | 2620 | 2500 | 2470 | 2400 | 2400 |
| Weight(kg) | 3.4 | 3.5 | 4.8 | 4.9 | 6.5 | 6.7 | 8.0 | 8.2 |
| Capacitance(µf) | 2 | 2 | 3 | 4 | 4 | 4 | 6 | 6 |
| The motor insulation class | F | F | F | F | F | F | F | F |
| Fan protection grade | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 |
| The sound power level | 47 | 47 | 52 | 52 | 53 | 55 | 56 | 56 |
