Product Details:
Payment & Shipping Terms:
|
Flange Inlet: | 160mm | Motor: | 115w |
---|---|---|---|
Speed: | 2620rpm | Air Flow: | 760m3/h |
Weight: | 4.9kgs | OEM: | Available |
High Light: | industrial inline exhaust fans,in line centrifugal duct fan |
The impellers fit well with the housing,
Indoor climate HVAC equipment;
large air flow, high efficiency, low noise.

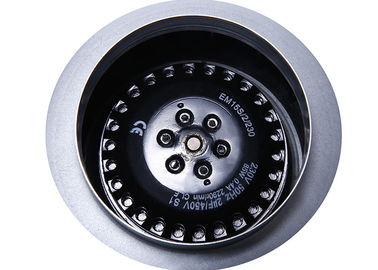

The impeller and the outer-rotor blower as drive motor of impeller hub, efficiently cooled by air.
very practical
light weight
low noise
Performance parameter | ||||||||
Model |
GDF 100 |
GDF 125 |
GDF 150 |
GDF 160 |
GDF 200 |
GDF 250 |
GDF 300 |
GDF 315 |
Air volume (m3/h) | 290 | 410 | 700 | 760 | 1000 | 1100 | 1800 | 1890 |
Wind pressure(pa) | 390 | 350 | 440 | 430 | 550 | 570 | 800 | 820 |
Voltage /frequency(v/hz) | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 |
Electric current(A) | 0.40 | 0.4 | 0.45 | 0.5 | 0.69 | 0.84 | 1.22 | 1.22 |
The input power(W) | 85 | 85 | 100 | 115 | 158 | 190 | 280 | 280 |
Speed(rpm) | 2290 | 2290 | 2500 | 2620 | 2500 | 2470 | 2400 | 2400 |
Weight(kg) | 3.4 | 3.5 | 4.8 | 4.9 | 6.5 | 6.7 | 8.0 | 8.2 |
Capacitance(µf) | 2 | 2 | 3 | 4 | 4 | 4 | 6 | 6 |
The motor insulation class | F | F | F | F | F | F | F | F |
Fan protection grade | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 |
The sound power level | 47 | 47 | 52 | 52 | 53 | 55 | 56 | 56 |
FAQ:
Could we customized our package carton?
Yes, our professional will design ideal carton printing;
What is your delivery time?
Usually from 15 - 30 days;
How do we know your quality?
Our ventilation fan products have been exported to many markets. If you like, you could try sample;
