12" 14'' Bed Depth 50mm Carbon Filter Hydroponics , Activated Hydroponic Air Filter

I'm Online Chat Now

12" 14'' Bed Depth 50mm Carbon Filter Hydroponics , Activated Hydroponic Air Filter

China 12" 14''  Bed Depth 50mm Carbon Filter Hydroponics  , Activated  Hydroponic Air Filter supplier
12" 14''  Bed Depth 50mm Carbon Filter Hydroponics  , Activated  Hydroponic Air Filter supplier 12" 14''  Bed Depth 50mm Carbon Filter Hydroponics  , Activated  Hydroponic Air Filter supplier

Large Image :  12" 14'' Bed Depth 50mm Carbon Filter Hydroponics , Activated Hydroponic Air Filter

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: IOS
Model Number: 4Inch 6inch 8 inch 10inch 12inch 315mm

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Packaging Details: Moisture-proof box
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs/day
Contact Now
Detailed Product Description
Material: 100% Virgin Activated Carbon Flange Size: 4"-12"
Flange: Aluminum Open Area: 55%
Pre-filter: Included Color: Silver
Using: Remove Odor When Grow

4"5"6"8"10"12"14'' carbon bed depth 50mm Hydroponic Activated Carbon Filter


Description

Carbon bed depth : 50mm/ 2 inch
Flange size: 4” 6” 8” 10” 12” / 4 inch, 6 inch, 8inch, 10 inch, 12inch
Length: 200mm-1400mm
Airflow: 280-3840 m³/h
Flange: Aluminum carbon air filter flange or chroming
Pre-filter: included, 15mm white filter fabric.

Production process

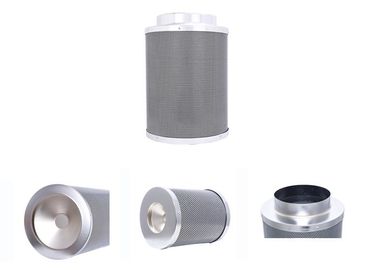

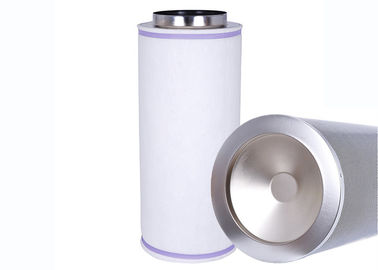

4 Inch Carbon Filter Air Scrubber Odor Control Air Purifier Activated charcoal Filter structure is simple: flange, activated carbon, galvanized sheet body, adding a pre-filter. it’s not easy to make the carbon filter perfectly. But we can do. First, We choose all best raw material to do it. Then,we have strictly production and inspection process. Professional vibration equipment, make the activated carbon clean and no dust. When filling the carbon, we also have special equipment to ensure the enough carbon. When producing the carbon filter, there will be a dust proof cloth under the filter to keep the filter clean. In order to prevent the leakage of activated carbon. There is special treatment black non-woven fabric inside the carbon filter that is anti-static.

Our advantage:

1 We are manufacturer, we can strictly control the quality and delivery
   time of aluminum flange carbon filter .
2 We insist to do the good quality but moderate price. Although our carbon filter
    is not famous brand, but we could catching their quality, so you can sell better
    and rapidly establish market .
3 If you want to build your own brand, we are willing to help. We can help do design
   your own logo, and    print it in the carbon filter body or box.

12" 14''  Bed Depth 50mm Carbon Filter Hydroponics  , Activated  Hydroponic Air Filter


ITEM

 Carbon weight
( kg)

N.W./G.W.
(kg)

Max airflow
(m3/h)

4"-150MM1.232.4/2.75280
4"-200MM1.52.75/3.1370
4"-250MM1.93.2/3.7470
4"-300MM2.43.75/4.3560
4"-400MM3.24.6/5.1750
4"-450MM3.75.1/5.6840
4"-500MM4.25.6/6.2940
4"-550MM4.66.2/6.91030
4"-600MM5.16.7/7.41120
5"-200MM2.33.4/4.1400
5"-250MM2.874/4.7500
5"-300MM3.454.6/5.2600
5"-400MM4.65.8/6.81200
5"-450MM5.36.6/7.51350
5"-500MM5.757.1/81500
5"-600MM6.98.3/9.11800
6"-250MM3.14/5.1530
6"-300MM3.654.6/5.7640
6"-350MM4.25.52/6.5750
6"-400MM4.86.5/7.3850
6"-450MM5.47.6/8.4960
6"-500MM68.7/9.91070
6"-550MM6.69.8/11.11170
6"-600MM7.310.9/12.21280
6"-950MM11.615.7/17.22030
6"-1000MM12.316.9/18.42130
8"-350MM5.48.1/8.8830
8"-400MM6.29.4/10.6950
8"-450MM79.4/10.61070
8"-500MM7.910.6/12.21190
8"-600MM9.311.8/13.31425
8"-1000MM15.617.7/19.32375
10"-550MM8.911.7/13.31510
10"-600MM1111.7/13.31650
10"-950MM17.523.7/25.52610
10"-1000MM18.4521.5/23.52750
12"-500MM10.312.5/13.61600
12"-600MM12.415/16.31920
12"-950MM19.727/28.63040
12"-1000MM20.828.8/30.53200
12"-1150MM2434/35.93680
12"-1200MM2535.6/37.73840
