| Material: | 100% Virgin Activated Carbon | Size: | 4"-12" |
|---|---|---|---|
| Flange: | Aluminum | Open Area: | 55% |
| Pre-filter: | Included | Color: | Silver |
| Using: | Remove Odor | ||
| High Light: | charcoal air purifier,carbon air filter hydroponics |
||

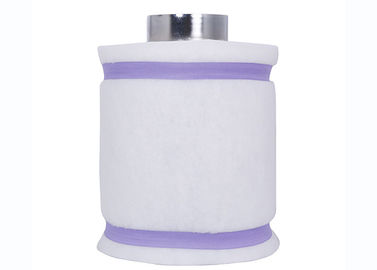

Big Airflow Room Carbon Filter Hydroponics Removing Carbon Dioxide From The Atmosphere
Description
T
Air Carbon filter bed depth: 65mm / 2.6 inch
Flange size: 4” -12”
Length: 200mm-1500mm
Carbon filter for odor Airflow: 380-4950 m³/h
Light granular carbon :4mm
Production process

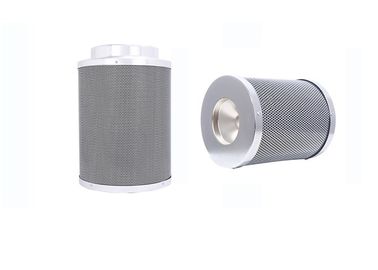

Big Airflow Room Carbon Filter Hydroponics Removing Carbon Dioxide From The Atmosphere structure is simple: flange, activated carbon, galvanized sheet body, adding a pre-filter. it’s not easy to make the carbon filter perfectly. But we can do. First, We choose all best raw material to do it. Then,we have strictly production and inspection process. Professional vibration equipment, make the activated carbon clean and no dust. When filling the carbon, we also have special equipment to ensure the enough carbon. When producing the carbon filter, there will be a dust proof cloth under the filter to keep the filter clean. In order to prevent the leakage of activated carbon. There is special treatment black non-woven fabric inside the carbon filter that is anti-static.
Inspection process:

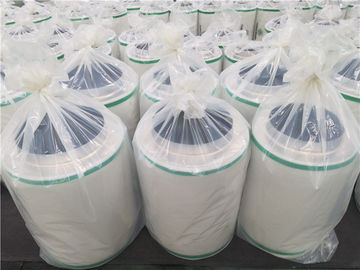

After finished the order, we will randomly selected the sample to check the quality. There is hardly no poor quality carbon filter, but we will reproduce it if there is.
30mm carbon layer thickness carbon filter
| Size |
Carbon weight (kg) |
N.W./G.W. (kg) |
Airflow (m3/h) |
| 100-200MM | 1.4 | 2.0/2.4 | 180 |
| 100-250MM | 1.75 | 2.5/2.9 | 230 |
| 100-300MM | 2.1 | 3.0/3.5 | 270 |
| 100-400MM | 2.8 | 3.7/4.3 | 365 |
| 100-500MM | 3.5 | 5.2/5.9 | 450 |
| 125-200MM | 1.64 | 2.55/2.95 | 210 |
| 125-300MM | 2.46 | 3.5/3.8 | 310 |
| 125-400MM | 3.3 | 4.4/5.0 | 420 |
| 125-500MM | 4.2 | 5.4/6.2 | 520 |
| 125-600MM | 5 | 6.3/7.0 | 610 |
| 150-300MM | 2.88 | 4.3/4.9 | 380 |
| 150-400MM | 3.84 | 5.3/5.9 | 500 |
| 150-500MM | 4.8 | 6.4/7.2 | 630 |
| 150-600MM | 5.75 | 7.5/8.3 | 750 |
| 150-800MM | 7.68 | 9.5/10.6 | 990 |
| 150-1000MM | 10.1 | 12.1/13.3 | 1230 |
| 160-500MM | 4.9 | 6.2/7.4 | 650 |
| 160-800MM | 7.84 | 9.7/10.8 | 1040 |
| 200-500MM | 6.8 | 8.1/9.0 | 990 |
| 200-600MM | 7.43 | 9.3/10.4 | 1190 |
| 200-800MM | 9.9 | 12/13.2 | 1580 |
| 200-1000MM | 12.9 | 14.5/15.8 | 2020 |
| 250-500MM | 7.7 | 10.05/11.5 | 1030 |
| 250-750MM | 11.55 | 14.7/16.2 | 1530 |
| 250-1000MM | 15.1 | 18.9/20.6 | 2030 |
| 250-1200MM | 18.5 | 18.9/24.2 | 2450 |
| 305-750MM | 15.4 | 25.7/23.5 | 1630 |
| 305-1000MM | 20.5 | 29/30.8 | 2210 |
| 305-1250MM | 25.9 | 35.9/37.7 | 2730 |
| 315-750MM | 14.6 | 20.5/22.2 | 1700 |
| 315-1000MM | 19.6 | 28.1/30 | 2350 |
| 315-1250MM | 24.5 | 34.3/36.6 | 3130 |
38mm carbon bed depth carbon filter for grow tent
| Size |
Carbon weight (kg) |
N. W./G.W. (kg) |
Airflow (m3/h) |
| 100-200MM | 1.2 | 1.9/2.3 | 180 |
| 100-250MM | 1.55 | 2.12/3.2.65 | 230 |
| 100-300MM | 1.9 | 2.9/3.4 | 270 |
| 100-400MM | 2.4 | 3.3/4.1 | 365 |
| 100-500MM | 3.2 | 4.1/5.0 | 450 |
| 100-600MM | 3.8 | 4.7/5.7 | 550 |
| 125-200MM | 1.3 | 2.25/2.65 | 210 |
| 125-400MM | 2.6 | 3.8/4.4 | 420 |
| 125-500MM | 3.3 | 4.6/5.6 | 520 |
| 150-300MM | 2.8 | 4.4/5.0 | 380 |
| 150-400MM | 3.7 | 5.4/6.0 | 500 |
| 150-500MM | 4.7 | 6.6/7.4 | 630 |
| 150-600MM | 5.6 | 7.7/8.6 | 750 |
| 150-800MM | 7.1 | 9.4/10.4 | 990 |
| 150-1000MM | 9.5 | 11.8/13.0 | 1230 |
| 200-400MM | 4.6 | 6.1/7.0 | 610 |
| 200-500MM | 5.8 | 8.0/8.9 | 990 |
| 200-600MM | 6.9 | 9.2/10.3 | 1190 |
| 200-800MM | 9.2 | 9.2/10.3 | 1580 |
| 200-1000MM | 12 | 14.8/14.2 | 2020 |
| 250-500MM | 8.7 | 11.0/12.5 | 1030 |
| 250-600MM | 10.4 | 12.9/14.5 | 1240 |
| 250-1000MM | 17.5 | 22.5/24.2 | 2030 |
| 305-1000MM | 20.7 | 30.5/32.3 | 2210 |
| 305-1200MM | 25 | 37.9/39.7 | 2730 |
| 356-1200MM | 28 | 42.9/44.7 | 3900 |
50mm carbon layer thickness carbon air filter for grow room
| Size |
Carbon weight (kg) |
N.W./G.W. (kg) |
Airflow (m3/h) |
| 4"-150MM | 1.23 | 2.4/2.75 | 280 |
| 4"-200MM | 1.5 | 2.75/3.1 | 370 |
| 4"-250MM | 1.9 | 3.2/3.7 | 470 |
| 4"-300MM | 2.4 | 3.75/4.3 | 560 |
| 4"-400MM | 3.2 | 4.6/5.1 | 750 |
| 4"-450MM | 3.7 | 5.1/5.6 | 840 |
| 4"-500MM | 4.2 | 5.6/6.2 | 940 |
| 4"-550MM | 4.6 | 6.2/6.9 | 1030 |
| 4"-600MM | 5.1 | 6.7/7.4 | 1120 |
| 5"-200MM | 2.3 | 3.4/4.1 | 400 |
| 5"-250MM | 2.87 | 4/4.7 | 500 |
| 5"-300MM | 3.45 | 4.6/5.2 | 600 |
| 5"-400MM | 4.6 | 5.8/6.8 | 1200 |
| 5"-450MM | 5.3 | 6.6/7.5 | 1350 |
| 5"-500MM | 5.75 | 7.1/8 | 1500 |
| 5"-600MM | 6.9 | 8.3/9.1 | 1800 |
| 6"-250MM | 3.1 | 4/5.1 | 530 |
| 6"-300MM | 3.65 | 4.6/5.7 | 640 |
| 6"-350MM | 4.2 | 5.52/6.5 | 750 |
| 6"-400MM | 4.8 | 6.5/7.3 | 850 |
| 6"-450MM | 5.4 | 7.6/8.4 | 960 |
| 6"-500MM | 6 | 8.7/9.9 | 1070 |
| 6"-550MM | 6.6 | 9.8/11.1 | 1170 |
| 6"-600MM | 7.3 | 10.9/12.2 | 1280 |
| 6"-950MM | 11.6 | 15.7/17.2 | 2030 |
| 6"-1000MM | 12.3 | 16.9/18.4 | 2130 |
| 8"-350MM | 5.4 | 8.1/8.8 | 830 |
| 8"-400MM | 6.2 | 9.4/10.6 | 950 |
| 8"-450MM | 7 | 9.4/10.6 | 1070 |
| 8"-500MM | 7.9 | 10.6/12.2 | 1190 |
| 8"-600MM | 9.3 | 11.8/13.3 | 1425 |
| 8"-1000MM | 15.6 | 17.7/19.3 | 2375 |
| 10"-550MM | 8.9 | 11.7/13.3 | 1510 |
| 10"-600MM | 11 | 11.7/13.3 | 1650 |
| 10"-950MM | 17.5 | 23.7/25.5 | 2610 |
| 10"-1000MM | 18.45 | 21.5/23.5 | 2750 |
| 12"-500MM | 10.3 | 12.5/13.6 | 1600 |
| 12"-600MM | 12.4 | 15/16.3 | 1920 |
| 12"-950MM | 19.7 | 27/28.6 | 3040 |
| 12"-1000MM | 20.8 | 28.8/30.5 | 3200 |
| 12"-1150MM | 24 | 34/35.9 | 3680 |
| 12"-1200MM | 25 | 35.6/37.7 | 3840 |
