Product Details:
Payment & Shipping Terms:
|
| Material: | Non-woven | Efficiency:: | G3 , G4 |
|---|---|---|---|
| Construction: | Panel Filter | Filtration Grade: | Pre Filter |
| Porosity: | 0.5μ | Weight:: | Customers Requirement |
| Application Fields: | HVAC, MAU System,building | ||
| High Light: | hepa panel filter,carbon panel filter |
||

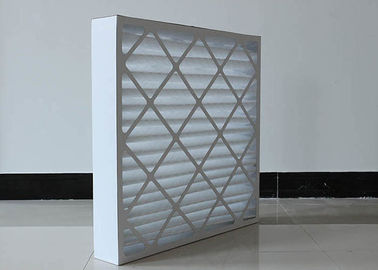

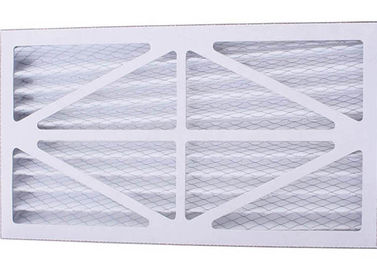

FRS-PPF G4 pleat &panel disposable cardboard G4 pre air filter for air
Description
The leader in industrial air filtration origins from Europe
Product features:
Low pressure drop and high DHC
Light weight and disposable
Efficiency: G3, G4, etc.
Material
Media: Synthetic fiber
Frame: Moisture resistant heavy-duty cardboard
Support grid: Aluminum mesh
Working condition:
Max. Temperature: 70℃
Max. Humidity: 100%RH (non-condensation state)
Product introduction:
Simply but rigid structure with pleated non-woven chemical fibers enclosed in a heavy-duty moisture resistant die-cut frame. The air exit side is supported with metal grid to enhance the rigidity of filters and maintain the pleat uniformity.
Application
Air intake filter can filter dust , pre-filter through air filter system.
Pre-filters used in commercial and industrial ventilation and air-conditioning system
Purifying and filtration of general indoor ventilation system
Pre-filtration of home-use air-conditioning and purifying equipment
DATA SHEET
Type of air intake filter: synthetic fiber foldaway filter
Frame of air intake filter: aluminum, cardboard or galvanized
Media of air intake filter: synthetic fiber
Protect mesh: aluminum net or stainless steel net
EN779 class of air intake filter:G2, G3,G4,F5
Average arrestance:84%-90%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3,EU4,EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 200Pa-250Pa
Max. air flow: 125% of the rated air flow
Temp. resistance: 100°C
Humidity:100%
Specification
| Type | Dimensions | Rated air flow(m3/h) | Initial pressure drop (Pa) | EN779 | |||
| Height(mm) | Width(mm) |
|
|||||
| FRS-CXD-1 | 595 | 595 | 46 | 1700/3400 | 30/70 | G3 | |
| FRS-CXD-2 | 595 | 290 | 46 | 850/1700 | 30/70 | G3 | |
| FRS-CXD-3 | 595 | 595 | 46 | 1700/3400 | 40/80 | G4 | |
| FRS-CXD-4 | 595 | 290 | 46 | 850/1700 | 40/80 | G4 | |
| FRS-CXD-5 | 595 | 595 | 46 | 1700/3400 | 45/90 | F5 | |
| FRS-CXD-6 | 595 | 290 | 46 | 850/1700 | 45/90 | F5 | |
