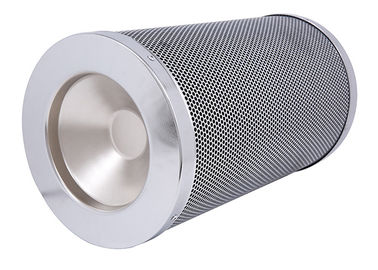

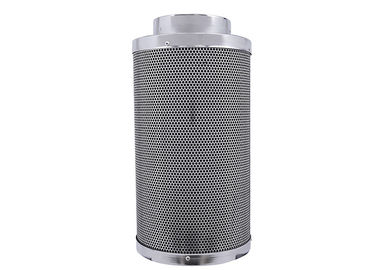

1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing Bad Smell From Air

I'm Online Chat Now

1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing Bad Smell From Air

China 1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing  Bad Smell  From Air supplier
1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing  Bad Smell  From Air supplier 1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing  Bad Smell  From Air supplier

Large Image :  1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing Bad Smell From Air

Product Details:

Place of Origin: China
Brand Name: No
Certification: ISO9001:2000
Model Number: 6inch*400mm

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 10USD-100USD
Packaging Details: 1 Plastic bag to protect filter body 2 Protective foam prevent the two ends of filter。 3 Palstic bag Protect box from moisture.
Delivery Time: 15-30days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000pieces/month
Contact Now
Detailed Product Description
Flange Size: 6inch Height: 400mm
Material: Galvanized Sheet Carbon Layer Thickness: 38mm
Carbon Type: Granular Carbon Filtration Efficiency: 95%



1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing Bad Smell From Air




-Removes all smells/odours when used with fan through activated carbon.

-The 1.5 inch carbon bed depth carbon filters in a variety of sizes to fit any fans.

-55% Open area custom mesh for maximum airflow.

-100% Virgin activated carbon, light granulated carbon.

-Carbon bed depth 1.5INCH.

-Chroming sheet flanges,or colour are black, blue, green or OEM.

- Pre filter set is included and also have other colours or to undertake OEM orders.

-1.5-3 year life span.

-The 1.5 inch carbon bed depth carbon filter Hot-sale in USA. and Europe E-sales.



ITEM Configuration Size
F.D.*O.D.*T1*T2
(inches)
Carbon bed depth (mm) Carbon
weight kg
N.W./G.W. (KG) AIRFLOW(m3/h)
100-200MM 4"X200MM*250MM 38 1.2 1.9/2.3 180
100-250MM 4"X250MM*300MM 38 1.55 2.12/3.2.65 230
100-300MM 4"X300MM*350MM 38 1.9 2.9/3.4 270
100-400MM 4"X400MM*550MM 38 2.4 3.3/4.1 365
100-500MM 4"X500MM*550MM 38 3.2 4.1/5.0 450
100-600MM 4"X600MM*650MM 38 3.8 4.7/5.7 550
125-200MM 4"X200MM*250MM 38 1.3 2.25/2.65 210
125-400MM 4"X400MM*450MM 38 2.6 3.8/4.4 420
125-500MM 4"X500MM*550MM 38 3.3 4.6/5.6 520
150-300MM 6"X300MM*350MM 38 2.8 4.4/5.0 380
150-400MM 6"X400MM*450MM 38 3.7 5.4/6.0 500
150-500MM 6"X500MM*550MM 38 4.7 6.6/7.4 630
150-600MM 6"X6000MM*650MM 38 5.6 7.7/8.6 750
150-800MM 6"X800MM*850MM 38 7.1 9.4/10.4 990
150-1000MM 6"X1000MM*1050MM 38 9.5 11.8/13.0 1230
200-400MM 8"XX400MM*450MM 38 4.6 6.1/7.0 610
200-500MM 8"X500MM*550MM 38 5.8 8.0/8.9 990
200-600MM 8"X600MM*650MM 38 6.9 9.2/10.3 1190
200-800MM 8"X800MM*850MM 38 9.2 9.2/10.3 1580
200-1000MM 8"X1000MM*1050MM 38 12 14.8/14.2 2020
250-500MM 10"X500MM*550MM 38 8.7 11.0/12.5 1030
250-600MM 10"X600MM*550MM 38 10.4 12.9/14.5 1240
250-1000MM 10"X1000MM*1050MM 38 17.5 22.5/24.2 2030
305-1000MM 12"X1000MM*1050MM 38 20.7 30.5/32.3 2210
305-1200MM 12"X1200MM*1250MM 38 25 37.9/39.7 2730
356-1200MM 12"X1200MM*1250MM 38 28 42.9/44.7 3900





We Jiujiu company-1.5 inch carbon bed depth carbon filter exporter was established in 2003 year with a production area of 1900sqms. After more than ten years development, now we have owned a production area more than 14000sqms and more than 100 employees. Mainly producing air filters, from 2007 year, we developed hydroponics grow carbon filters and exported them to U.S.A, UK, France, Germany and other countries by a light company in Fuzhou. At that time, we only have 30-38mm pellet carbon filters.

From 2012 year, we developed another 4 kinds of hydroponics carbon filters and mufflers. Namely,



1*50mm carbon bed depth filters, aluminum flange, granular carbon, perforated filter mesh;

2* 50mm carbon bed detpth filters,chromed flange, granular carbon, perforated filter mesh;

3*65mm carbon bed filters, galvanized flange, granular or pellet carbon, perforated filter mesh; 4*1.5 inch carbon bed depth carbon filter , granular carbon, perforated mesh;

5*muffler matched with fan.

At the same time, we also exported to our own over sea clients in U.S.A, Canada, New zealand, UK etc. Packing carbon medium has pellet one, granular one and imported Australia one. Now our produced filters and mufflers are popular in European & America markets and Amazon. Our products are riper and riper, then we will develop one or two clients in every market, we could do OEM, Jiujiu company as the 1.5 inch carbon bed depth carbon filter exporter, to design special sales features for clients and win more market share rate.

1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing  Bad Smell  From Air



1.5 inch carbon bed depth carbon filter is mainly for America market, also European market and hot in Amazon etc.

6Loading more carbon, light weight good quality, IAV more than 950mg/g.

7Small and exquisite appearance, light weight and suitable for post.

8Flange is chromed one. Good out appearance, flange could be directly connected with ducting pipe and fan. Also could be directly connected with outlet of fan.

91.5 inch carbon bed depth carbon filter Conical base design according to aerodynamics principle, which makes full use for base carbon.

10Perforated filter mesh provides 53% open area;



1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing  Bad Smell  From Air

1.5 Inch Carbon Filter Hydroponics , Activated Charcoal Filter Capturing  Bad Smell  From Air



Customized logo design available on Pre-filters

JIUJIU 1.5 inch carbon bed depth carbon filter exporter equips environment friendly Pre-filter with 15mm thickness and super thin PE fiber, which is no glue, recyclable, 95% efficiency and with air flow rate 4200m/s. Completely satisfying filtration requirements for Pro hydroponics carbon filters. We will print your own special LOGO by heart as per your requirements. If your LOGO is only by consisted of color chips, we could print 3 kinds of colors. Try to let clients remember your products and be your fans after using your products.



Returned around carbon filter

Has your carbon filter been made full use? Oh, no, air could be lazy, it goes through near, at this time, right, from base, little air goes here, base part carbon will become ornaments, then how should we do? Check 1.5 inch carbon bed depth carbon filter exporter’s design, flange and base are reversible. Unscrew flange and base screws by screwdriver, get down flange and base, look, still a complete carbon filter, then mounting base plate on before flange position and mounting flange on before base position. Perfect, in this way, the carbon filter could be used for another several months.



Flange logo stamping

JIUJIU 1.5 inch carbon bed depth carbon filter flange material has galvanized steel, chromed steel, pvc coated steel and oxidation aluminum. Steel material flange is with strong hardness, which could be made kinds surface treatment process and not easy to be changed shape during transportation. Aluminum flange is light wight, bright surface and could be yellow, green, red, black and blue color after oxidation. No matter what kind of material flange, 1.5 inch carbon bed depth carbon filter exporter could stamp clients logo on the flange rim or base dent part, then zinc coating, chroming, pvc coating etc, with special workmanship to show brand power.
