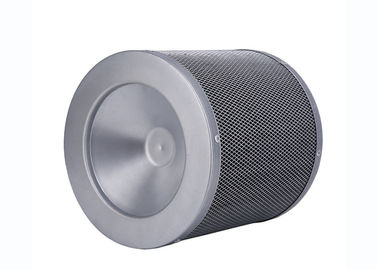

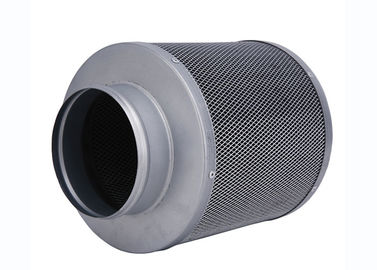

5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration Stink Removal

I'm Online Chat Now

5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration Stink Removal

China 5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration  Stink Removal supplier
5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration  Stink Removal supplier 5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration  Stink Removal supplier

Large Image :  5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration Stink Removal

Product Details:

Place of Origin: China
Brand Name: No
Certification: ISO9001:2000
Model Number: 5inch*200mm

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 10USD-100USD
Packaging Details: 1 Plastic bag to protect filter body 2 Protective foam prevent the two ends of filter。 3 Palstic bag Protect box from moisture.
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pieces/month
Contact Now
Detailed Product Description
SIze: 5inch Material: Galvanized Sheet
Height: 200mm (not Include Flange) Inner Diameter: 125mm
Out Diameter: 201mm Carbon Type: Pelletized Carbon

-Removes all smells/odours when used with fan through activated carbon.

-The pelletized carbon filter in a variety of sizes to fit any fans.

-70% Open area custom expanded mesh for maximum airflow.

-100% Virgin activated carbon, 4mm pelletized carbon or light granulated carbon.

- Galvanized sheet flanges colour are black, blue, green or OEM.

- Pre filter set is included and also have other colours or to undertake OEM orders.

-1.5-2 year life span.

-pelletized carbon filter hot-sale in Europe market.



What’s the different in the JIUJIU pelletized carbon filter with other pelletized carbon ?

 pelletized carbon filter used pelletized carbon is from raw material is from Ningxia province deep mountains’ blind coal, after carbon ization mix a small amount coal tar as bonding agent. It made into strips and then experience high temperature activation, coal tar will volatilize in the high temperature activation process,so the pelletized carbon we used has developed porosity, larger surface area, strong adsorption, can endure high temperature, not easily broken and fly ash ,long service life span .



ITEM Configuration Size
F.D..*T1*T2
(inches)
Carbon bed depth (mm) Carbon
weight kg
N.W./G.W. (KG) AIRFLOW(m3/h)
100-200MM 4"X200MM*246MM 30 1.4 2.0/2.4 180
100-250MM 4"X250MM*296MM 30 1.75 2.5/2.9 230
100-300MM 4"X300MM*346MM 30 2.1 3.0/3.5 270
100-400MM 4"X400MM*446MM 30 2.8 3.7/4.3 365
100-500MM 4"X500MM*546MM 30 3.5 5.2/5.9 450
125-200MM 5"X200MM*246MM 30 1.64 2.55/2.95 210
125-300MM 5"X300MM*346MM 30 2.46 3.5/3.8 310
125-400MM 5"X400MM*446MM 30 3.3 4.4/5.0 420
125-500MM 5"X500MM*546MM 30 4.2 5.4/6.2 520
125-600MM 5"X600MM*646MM 30 5 6.3/7.0 610
150-300MM 6"X300MM*346MM 30 2.88 4.3/4.9 380
150-400MM 6"X400MM*446MM 30 3.84 5.3/5.9 500
150-500MM 6"X500MM*546MM 30 4.8 6.4/7.2 630
150-600MM 6"X540MM*646MM 30 5.75 7.5/8.3 750
150-800MM 6"X800MM*846MM 30 7.68 9.5/10.6 990
150-1000MM 6"X1000MM*1046MM 30 10.1 12.1/13.3 1230
160-500MM 6.3"X500MM*546MM 30 4.9 6.2/7.4 650
160-800MM 6.3"X800MM*846MM 30 7.84 9.7/10.8 1040
200-500MM 8"X500MM*546MM 30 6.8 8.1/9.0 990
200-600MM 8"X600MM*646MM 30 7.43 9.3/10.4 1190
200-800MM 8"X800MM*846MM 30 9.9 12/13.2 1580
200-1000MM 8"X1000MM*1046MM 30 12.9 14.5/15.8 2020
250-500MM 10"X500MM*546MM 30 7.7 10.05/11.5 1030
250-750MM 10"X750MM*796MM 30 11.55 14.7/16.2 1530
250-1000MM 10"X1000MM*1046MM 30 15.1 18.9/20.6 2030
250-1200MM 10"X1000MM*1246MM 30 18.5 18.9/24.2 2450
305-750MM 12"X750MM*796MM 36 15.4 25.7/23.5 1630
305-1000MM 12"X1000MM*1046MM 36 20.5 29/30.8 2210
305-1250MM 12"X1000MM*1296MM 36 25.9 35.9/37.7 2730
315-750MM 12.5"X750MM*796MM 30 14.6 20.5/22.2 1700
315-1000MM 12.5"X1000MM*1046MM 30 19.6 28.1/30 2350
315-1250MM 12.5"X1250MM*1246MM 30 24.5 34.3/36.6 3130



The mesh of this pelletized carbon filter ,Use higher opening rate diamond expanded mesh loaded 4mm virgin cylindrical carbon,good price and good quality carbon filter, since 2007 hot in UK hydroponics, FRANCE hydroponics, Germany hydroponics Europe and other countries,working life can reach 1.5-2 years.JIUJIU filter company is the first-class pelletized carbon filter factory



5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration  Stink Removal



Matching ducting instruction(Euro type);

Many clients used to connect carbon filter and fan by ducting and fix ducting by clips, JIUJIU pelletized carbon filter made the filter flange out rim has a round cyclic annular protuberance, which helps clips to fix ducting strongly and no air leakage.

5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration  Stink Removal



Customized logo design available on Pre-filters

 pelletized carbon filter equips environment friendly Pre-filter with 15mm thickness and super thin PE fiber, which is no glue, recyclable, 95% efficiency and with air flow rate 4200m/s. Completely satisfying filtration requirements for Pro hydroponics carbon filters. We will print your own special LOGO by heart as per your requirements. If your LOGO is only by consisted of color chips, we could print 3 kinds of colors. Try to let clients remember your products and be your fans after using your products.



Pre-filer elastic belt design

  pelletized carbon filter factory quality elastic belt with 2cm width to fix both sides of pre-filter, which help fix pre-filter on activated carbon filter tightly and ensure air flow pass through pre filter completely. Elastic belt color could be matched with your logo, such as green, white, red, blue, yellow etc, thought not too big quantity, we could customized for your brand. If order quantity is a bit bigger, elastic belt could embroidered logo, JIUJIU activated carbon filter, every details will be as per your request, to be prominent for your own design.



Inspection

  pelletized carbon filter factory every product will have quality inspection, from carbon, every order, we will send carbon sample to 3rd professional authority agency. Every filter will be tested by professionals before packing, mainly for appearance, height and perpendicularity.

5inch*200mm Pelletized Carbon Filter Hydroponics , Charcoal Air Filtration  Stink Removal
