Dust collector filter cartridge

Share to:

Jiujiu brand dust filter cartridge is adopted new workmanship and technology, which uses filter media materials from PS, PUS, PTEE, PET non woven fabric, laminating anti-static non woven fabric, long fiber filter paper, composite fiber, metal filter mesh, fiber glass, chemical fiber non woven fabric, synthetic fiber fabric, activated carbon cloth, imported fiber, long fiber filter felt, domestic filter medias and our own particularly specially developed dust collector filter media. Our filter media materials has these nice properties of high filtration precision, high anti strength, high corrosion resistance, high temperature resistance, uniform distribution and excellent filtration performance.

Quantity:
Jiujiu brand dust filter cartridge is adopted new workmanship and technology, which uses filter media materials from PS, PUS, PTEE, PET non woven fabric, laminating anti-static non woven fabric, long fiber filter paper, composite fiber, metal filter mesh, fiber glass, chemical fiber non woven fabric, synthetic fiber fabric, activated carbon cloth, imported fiber, long fiber filter felt, domestic filter medias and our own particularly specially developed dust collector filter media. Our filter media materials has these nice properties of high filtration precision, high anti strength, high corrosion resistance, high temperature resistance, uniform distribution and excellent filtration performance.

Now, our manufacturing dust filter cartridges varieties are more than hundreds. Which is widely applied in chemical production line, pharmaceutical production line, cigarette production line, glass production line, powder painting line, powder sand blasting line, shot blasting line, cement production line, grinding machine dust collector and other industrial dust collectors. Precision of our filter cartridge could be 0.3um and filtration efficiency could be 99.99%. According to filtration powder pore size of cement, coal ash, rock flour, mineral powder, chemical powder to design the Max pore size and filter pore size affection by adhesive force. Our filters could meet filtration requirements of varieties powder well.

   dust filkter cartridge

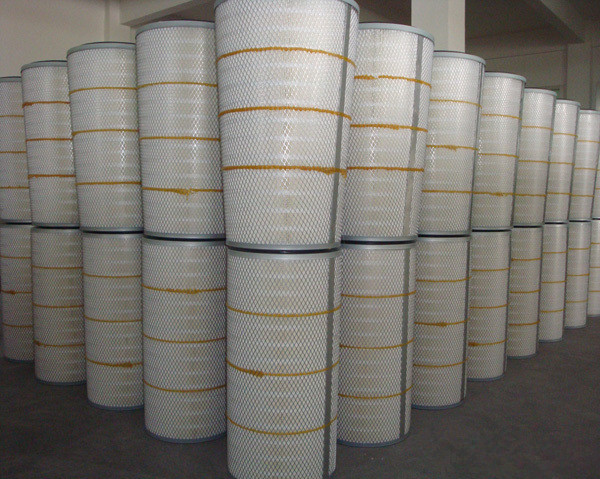

Usually applied in inlet air filtration for  generator set, engineering vehicles, tank, which is installed gas turbine.
Property:
▲Gas turbines filters is adopted high performance nanoscle filter paper, which includes 80% wood fiber and 20% other fiber. For 0.5um particle, its original filter efficiency could be 99.99%, which is better suitable pulse jet cleaning in high humidity condition.
▲Gas turbines filter is by pleated design to ensure air flow volume.
▲High strength hot dipped galvanized inner & outer metal mesh, hot dipped galvanized lid has stronger ability of anti-rust.
▲Professional elastic rubber.
▲Customized design available.
 Model Specification Installation holes Preliminary resistance Filtration area Filtration efficiency
AR-JJ4360B 406/360*φ324*600 Φ14 120-150Pa 20m2 99.99%
AR-JJ4366B Φ406*φ215*/φ362*φ215*660 Φ14 120-150Pa 22m2 99.99%
AR-JJ4366A Φ445*φ330/324*φ215*660 Φ14 120-150Pa 23.3m2 99.99%
AR-JJ4160 Φ408*φ292*600 Φ14 120-150Pa 21.6m2 99.99%
AR-JJ4170 Φ408*φ292*700 Φ14 120-150Pa 23m2 99.99%
AR-JJ4187 Φ408*φ292*875 Φ14 120-150Pa 33.2m2 99.99%
AR-JJ3260 Φ324*φ215*600 Φ14 120-150Pa 18m2 99.99%
AR-JJ3266 Φ324*φ215*660 Φ14 120-150Pa 21m2 99.99%
AR-JJ3275 Φ324*φ215*750



AR-JJ3266B Φ324*φ215*/φ250*φ134*660 Φ14 120-150Pa 16.4m2 99.99%
AR-JJ3666B Φ360*φ215*660 Φ14 120-150Pa 28m2 99.99%

Casting, shot blasting and powder painting filter cartridge is mainly applied for powder painting, spray, shot blasting works, such as pigment industry, wood processing, pvc surface spray and other high dust industry filtration and recycle.

Property:
▲Jiujiu dust filter cartridge is adopted 100%PET long fiber non woven fabric,filtration precision is from 5-15micro,good air permeability,good rigidity,not easy to be changed in shape by pulse jet cleaning.
▲supporting mesh and lid are hot dipped galvanized steel, which is not easy to get rust. Recommended temperature≦135℃ and relative humidity100%;
▲dedicated elastic chloroprene rubber;
▲customized design available.
 Model  Specification Preliminary resistance Working temperature Filtration area
AR-JJ3266 Φ324*Φ215*600 150Pa 93℃-135 8.6m2
AR-JJ3266 Φ324*Φ215*660 150Pa 93℃-135 9.4m2
AR-JJ3292 Φ324*Φ215*920 150Pa 93℃-135 13.2m2
AR-JJ3566 Φ350*φ240*660 150Pa 993℃-135 10.3m2
AR-JJ3560 Φ350*φ240*600 150Pa 93℃-135 9.4m2
AR-JJ3570 Φ350*φ240*705 150Pa 93℃-135 10.9m2
AR-JJ3590 Φ350*φ240*900 150Pa 93℃-135 14m2
AR-JJ35135 Φ350*φ240*1350 150Pa 93℃-135 21m2
AR-JJ5190 Φ510*φ340*900 150Pa 93℃-135 29m2

Cement silo filter is mainly applied in cement mixer, sweeping machine, mining, metallurgy, machinery, chemical industry, food and other high dust industry. In addition to, it is widely used in gas tiny, non fiber dry dust filtration and recycle.
Property:
▲Jiujiu silo filter is adopted imported PS/PUS/PET long fiber non woven fabric, laminating anti-static non woven fabric, fiber composite materials,which is low resistance, high filtration precision, high strength and could be used after many times vibration back flushing. In special industry, use PTFE laminating filter materials,PTFE laminating filter cartridge suits for extreme dust and high precision filtration industry, such as welding smoke, pharmaceutical industry and resisting medium filtration.
▲Flange is stamped by hot dipped galvanized steel plate. High strength polyurethane flange and engineering PP flange could be completely matched with WAN or other Famous brand.
▲High strength wrinkle uniform clamp to the uniform of filter medium material.
▲Customized design available.

Cement silo filter specification:
NO. FLANGE SIZE mm FILTER CYLINDER SIZE mm HEIGHT mm Filtration area m2
JJ-1570T 155 115 700 1.4
JJ-1590T 155 115 900 1.8
JJ-1562PU 150 140 620 1
JJ-1592 150 140 920 1.5
JJ-1594PP 145 142 940 1.5
JJ-1766F 165 117 660 1.2

Alternative cloth bag dust filter cartridge common specification:
NO. FLANGE SIZE mm FILTER CYLINDER SIZE mm HEIGHT mm Filtration area m2
JJ-1860TB 180 155 600 1
JJ-14200PUB 145 110 2000 4
JJ-16200PUB 165 133 2000 4.5
JJ-17200TB 170 145 2000 5
JJ-22100TB 220 155 1000 3.3
JJ-13200PUB 130 100 2000 3
JJ-15200TB 155 120 2000 4.3
JJ-1766TB 177 145 660 1.7

Features
▲Applying imported PTEE membrane polyester fiber filtration material with small aperture and high precision;
Smooth material surface, easy for cleaning;
▲High filtration efficiency 99.999%;
▲Stable chemical properties, corrosion resistance.

Application:
Metal joining, plasma cutting.
Recycling of molybdenum & lead.

Installation:
Screw lifting and other ways.

Nomal Specification:Φ324*660
Order with specified sizes are acceptable.

Model Specification Airflow Preliminary resistance Working Temperature Filtration
Area
Filtration
Efficiency
AR-HF3266 Φ324*660 700m3/h 200-250Pa 95℃-135 9.4m2 99.999%
